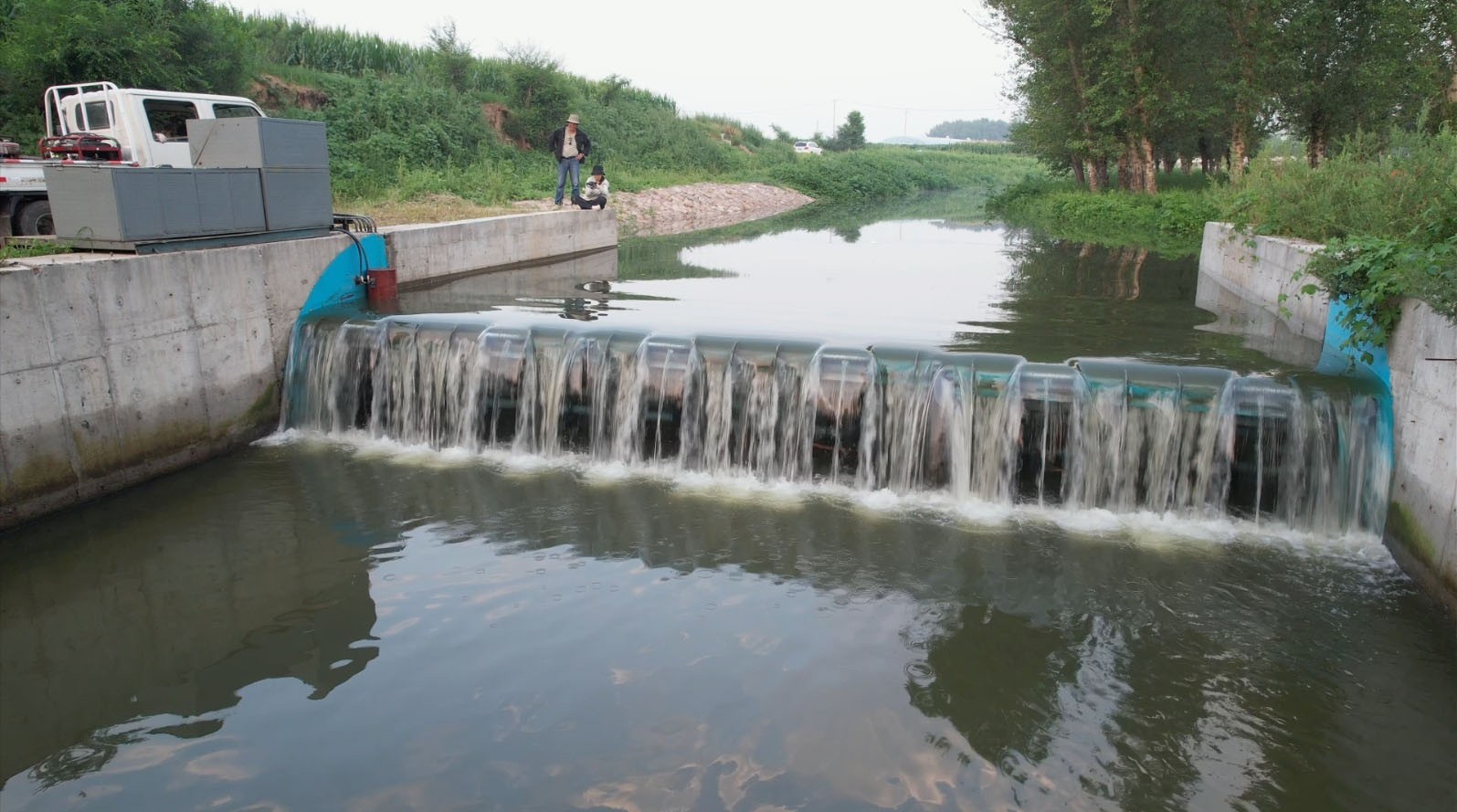

Simplified Elevated Dam
L*H: 10*1.5(m); 10*2.0(m)
Applications: Cascade water storage
Completion: Aug; 2020
Location: Jilin, China

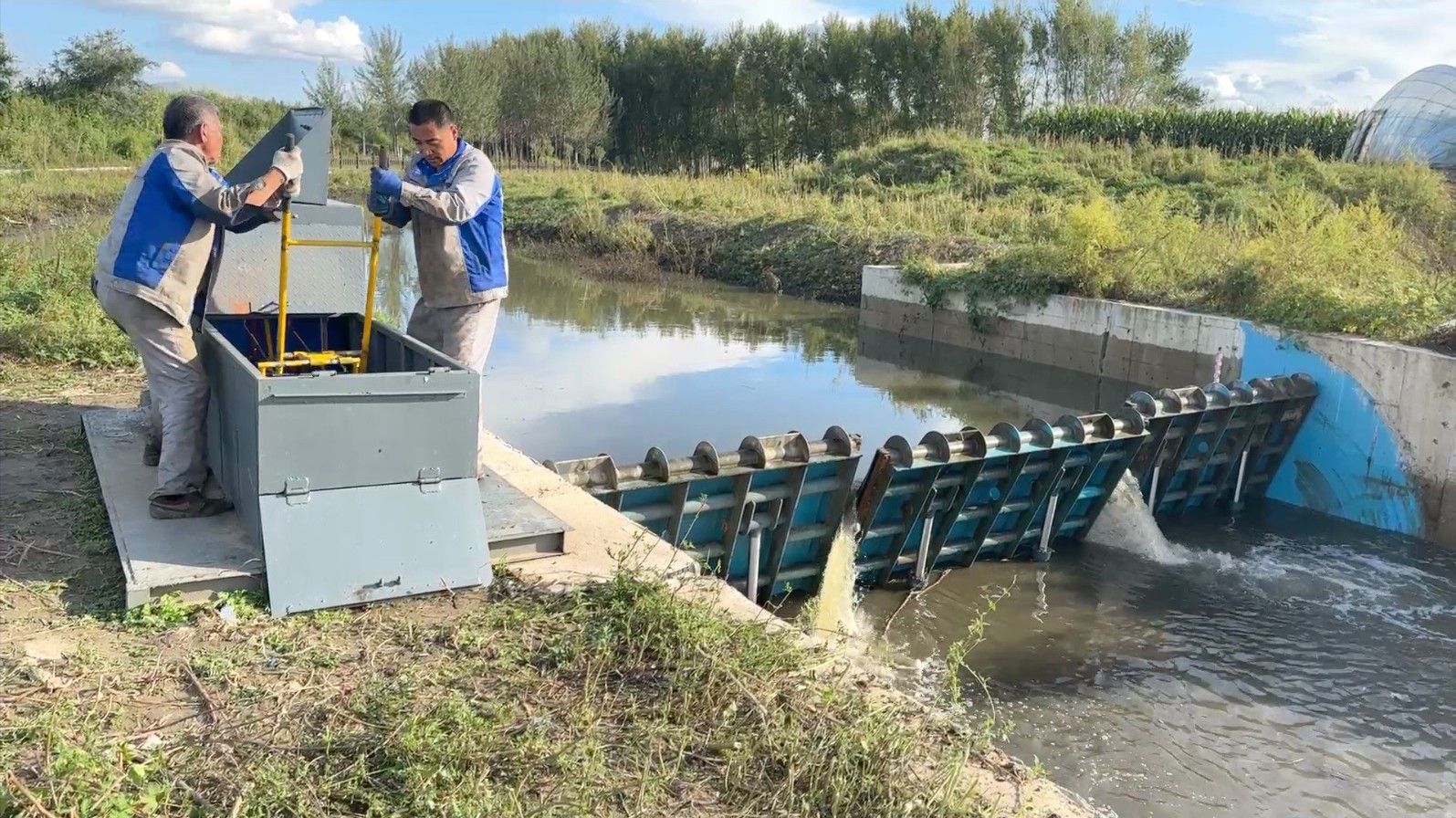

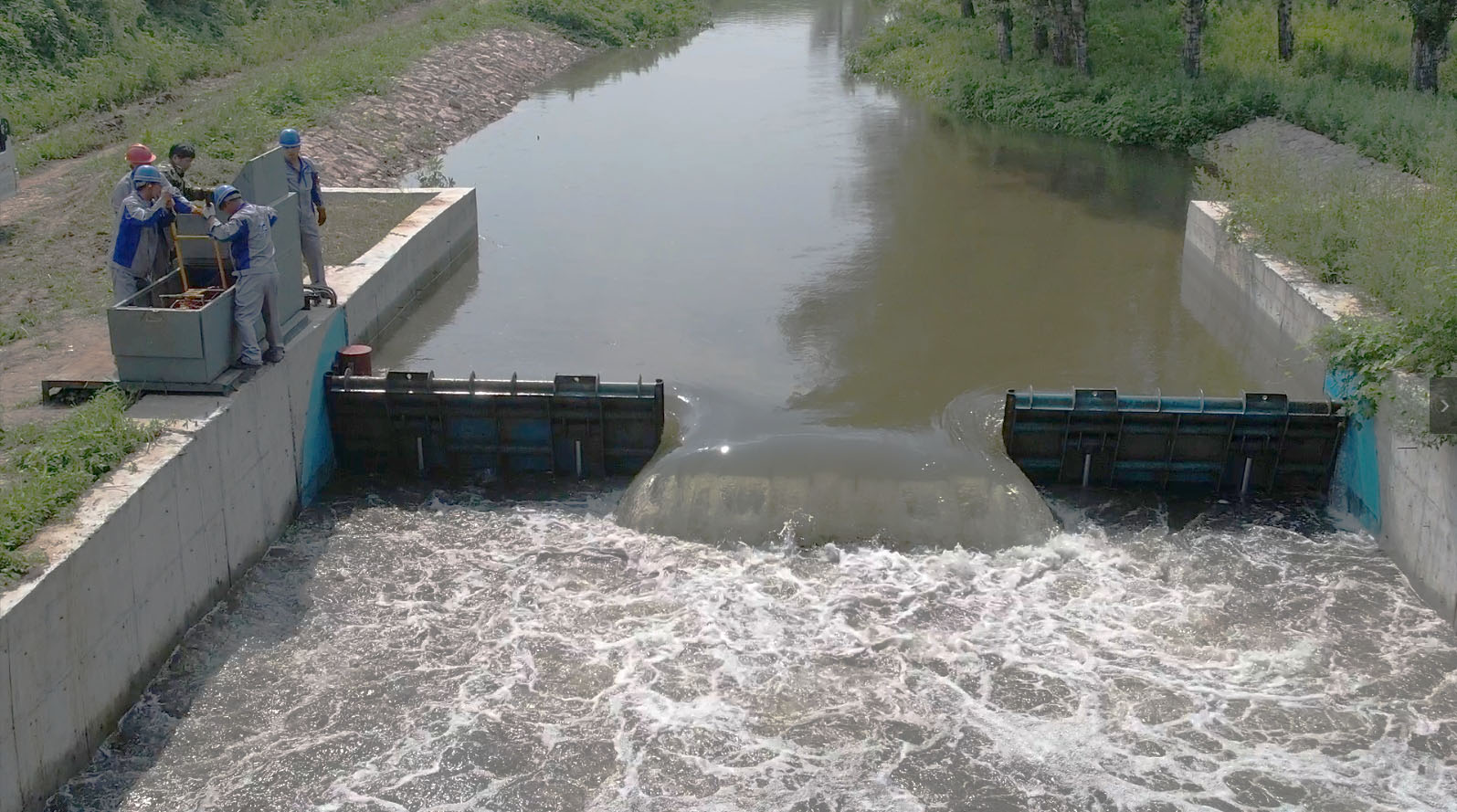

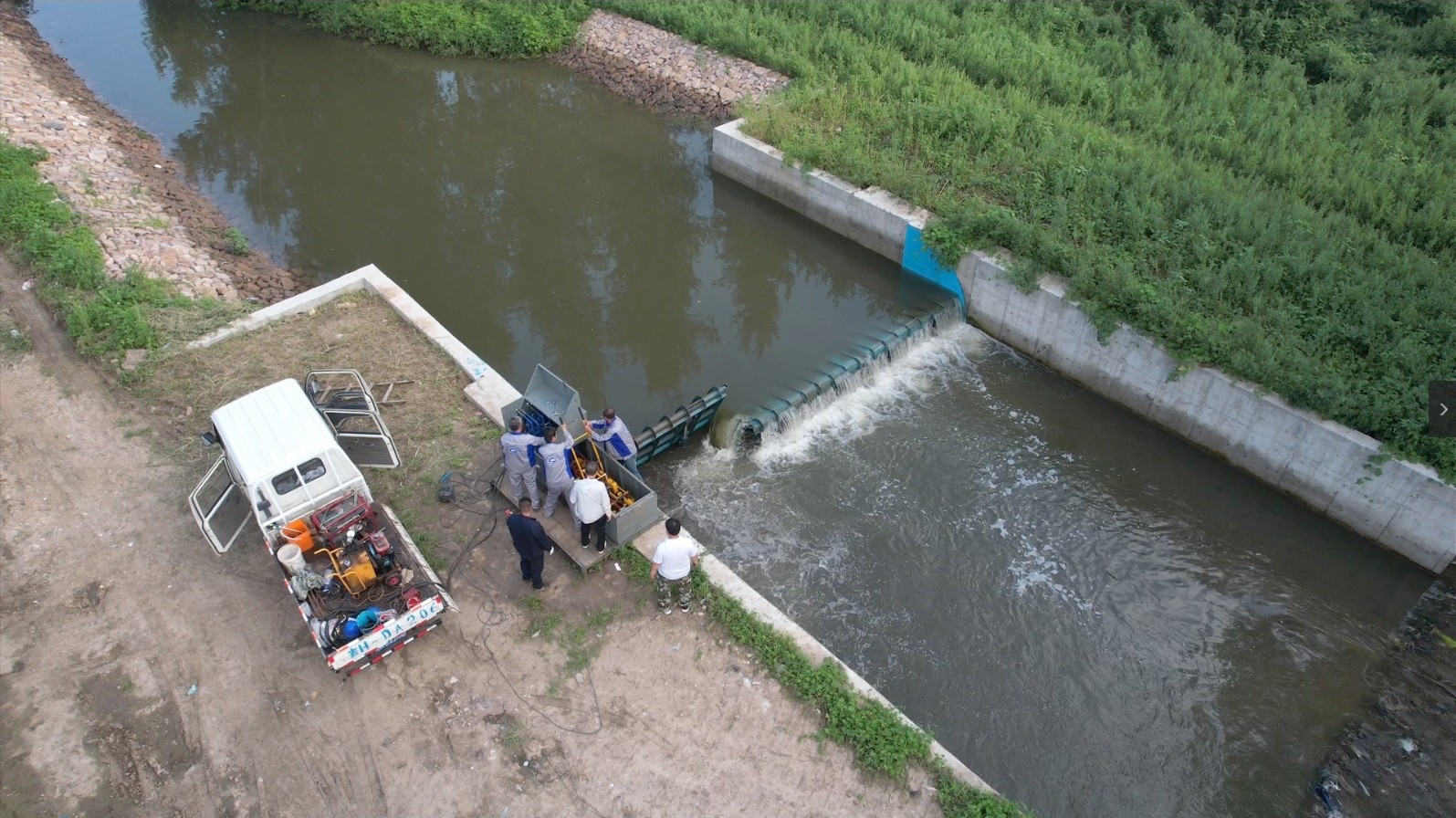

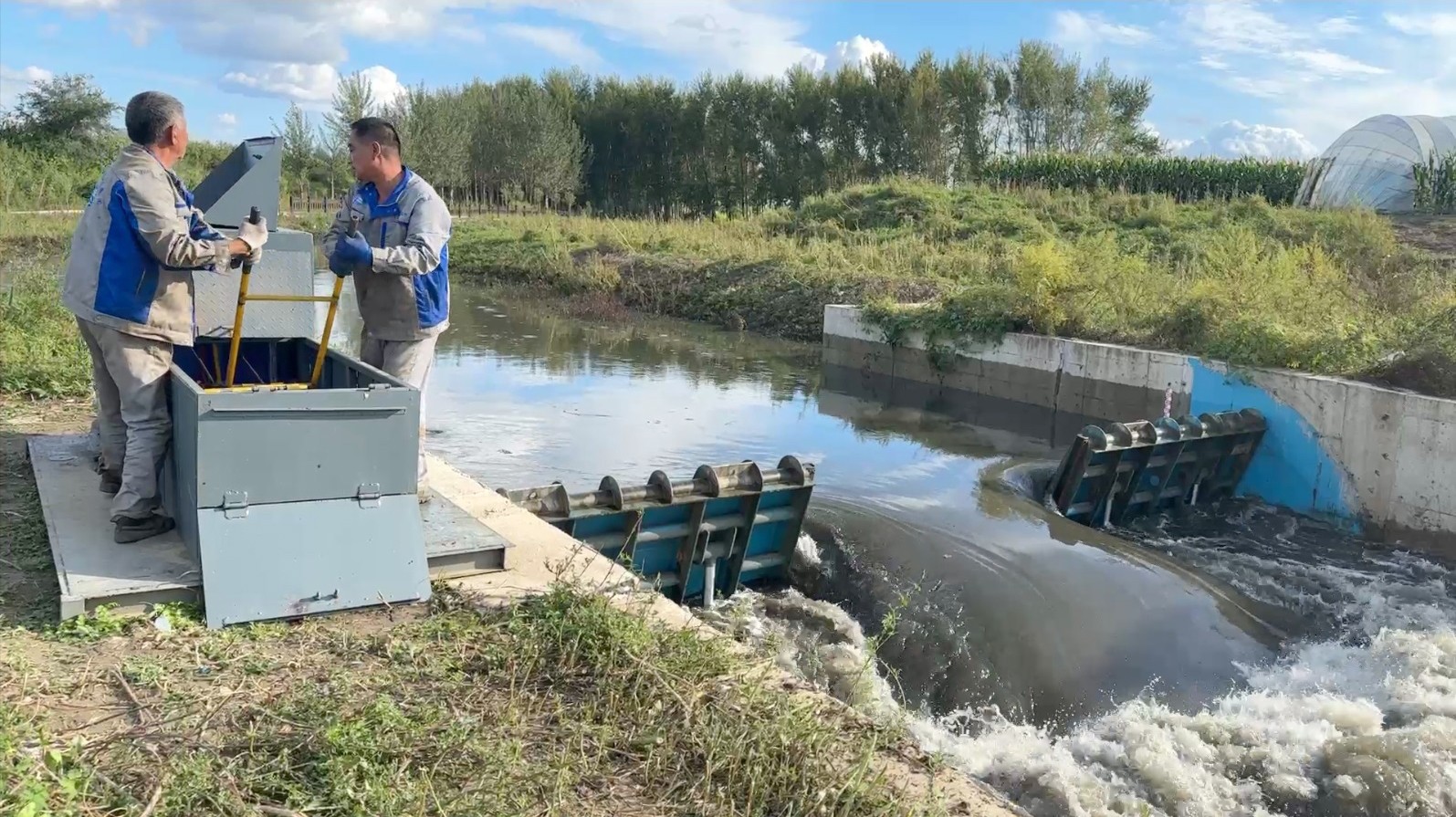

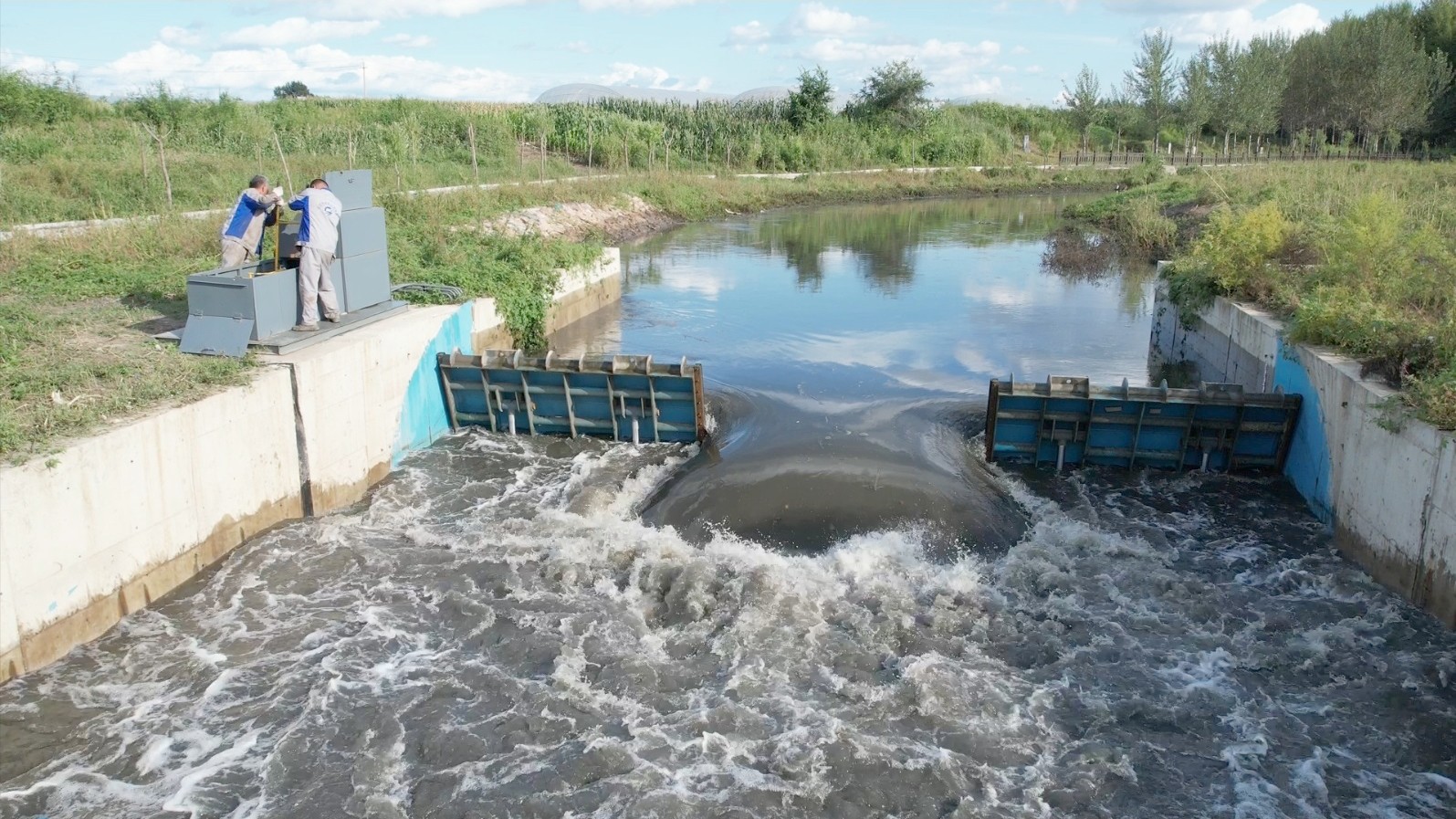

The gate is driven to lift and drop by manually operating the drive rod in this project. This driving form is eco-friendly, which is more suitable for remote mountainous rivers where the river width is narrower (length less than 30m), the height of gate is less than 2m, and not conductive to set up transmission line.
