Product
Containerized water treatment plant and seawater desalination plants are designed to provide effective solutions for construction sites or long-term water treatment requirements. As a professional containerized water treatment plant supplier, BIC combines complete systems with leading seawage treatment and water purification technologies, installs the high performance mobile systems inside 20 or 40 ft compact containers, which is suitable for transportation. Perfect for outside mobile water treatment as a temporary or permanent solution with adequate protection against varous weather conditions.

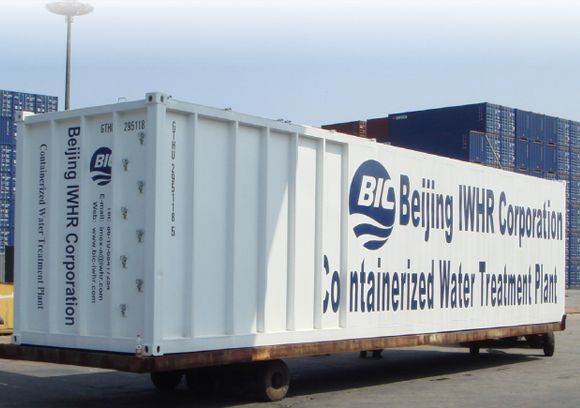

Containerized Water Treatment Plant
Model Parameter | ET-0.5C | ST-1C | ST-2C | ST-5C | ST-10C(G) | ST-15C(G) | ST-20C(G) | ||
| Water quantity m3/h | 0.5 | 1 | 2 | 5 | 10 | 15 | 20 | ||
| Rated recovery rate% | 50~65 | 50~65 | 50~65 | 60~75 | 60~75 | 60~75 | 60~75 | ||
| Overall dimensions(mm) | length | 1500 | 1500 | 1500 | 6058 | 6058 | 6058 | 6058 | |
| width | 800 | 800 | 800 | 2438 | 2438 | 2438 | 2438 | ||
| height | 1800 | 1800 | 1800 | 2591 | 2591 | 2591 | 2591 | ||
| Container Model | / | 20 feet to move | |||||||
| Installed power(KW) | 3 | 6 | 8.5 | 13.5 | 22 | 30 | 36 | ||
Containerized Sewage Treatment Plant
Model Parameter | ET- 10C(G) | ET- 20C(G) | ET-30C(G) | ET- 40C(G) | ET- 50C(G) | ET- 60C(G) | ET-75C(G) | ET-100C(G) | ||
| Water quantity 3/d | 10 | 20 | 30 | 40 | 50 | 60 | 75 | 100 | ||
| Rated removal rate% | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | ||
| Overall dimensions(mm) | length | 6058 | 6058 | 6058 | 6058 | 12192 | 12192 | 12192 | 12192 | |
| width | 2438 | 2438 | 2438 | 2438 | 2438 | 2438 | 2438 | 2438 | ||
| height | 2591 | 2591 | 2591 | 2591 | 2896 | 2896 | 2896 | 2896 | ||
| Container Model | 20 feet to move | 40feet to move | ||||||||
| Installed power(KW) | 6.86 | 7.88 | ||||||||
Model Parameter | ET-150C | ET-200C | ET-250C | ET-300C | ET-400C | |
| Water Quantity m3/d | 150 | 200 | 250 | 300 | 400 | |
| Rated removal rate% | 98~99 | 98~99 | 98~99 | 98~99 | 98~99 | |
| Overall dimensions(mm) | length | Combined | ||||
| width | ||||||
| height | ||||||
| Container Model | 20 feet and 40 feet teu | |||||
| Installed power(KW) | 14.025 | 16.725 | ||||
With the cooperation of many domestic and foreign experts and the combination of many advanced technologies at home and abroad, this series of containerised water treatment plant can be applied to water treatment equipment under different working conditions. It realizes unattended and automatic operation in the real sense, and has the characteristics of small sewage discharge, diversified system power supply modes and extremely low power consumption.
Containerized water treatment is widely applicable to the purification of water used by industrial and mining enterprises and urban and rural domestic water with rivers, rivers, lakes, ponds and surface water as drinking water sources. Containerized wastewater treatment plant is suitable for the treatment of domestic sewage in residential quarters, office buildings, shopping malls, hotels, government schools, troops, factories, small and medium-sized towns, municipal administration, etc. According to the different effluent quality, containerized treatment plant can be divided into grade I effluent standard and standard discharge standard.

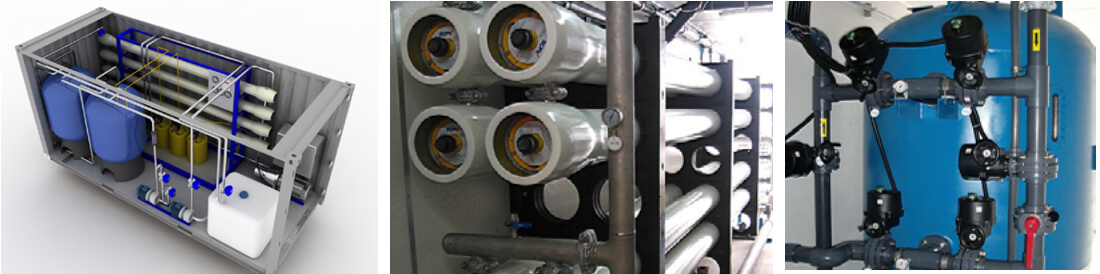

Containerized Water Purification Plant
Water purification plant is mainly used for industrial, mining, and domestic drinking purpose when raw water is sourced from rivers, lakes, ponds and surface water.
Containerized Water Treatment Plant
Containerised sewage treatment plant is suitable for all kinds of sewage and industrial wastewater in offices, markets, hotels, schools, factories, municipalities, temporary municipal industrial wastewater treatment, port wastewater treatment, temporary construction sites, pharmaceutical industry, ect.

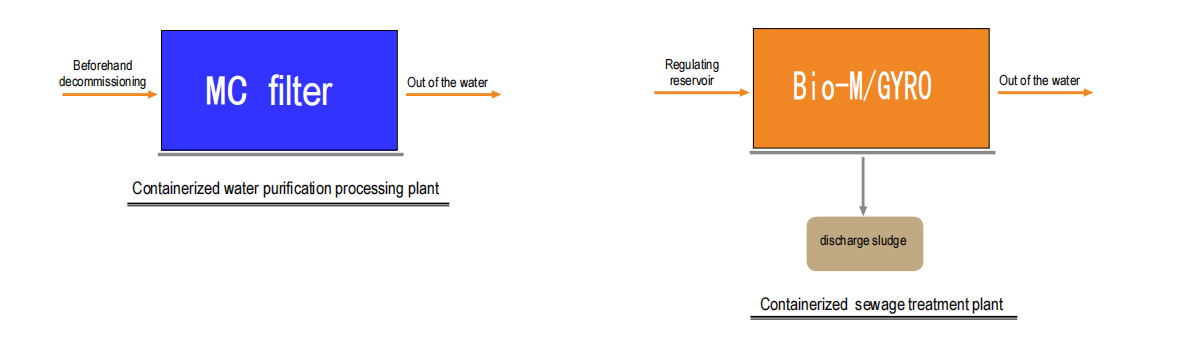

Container Water Treatment Process

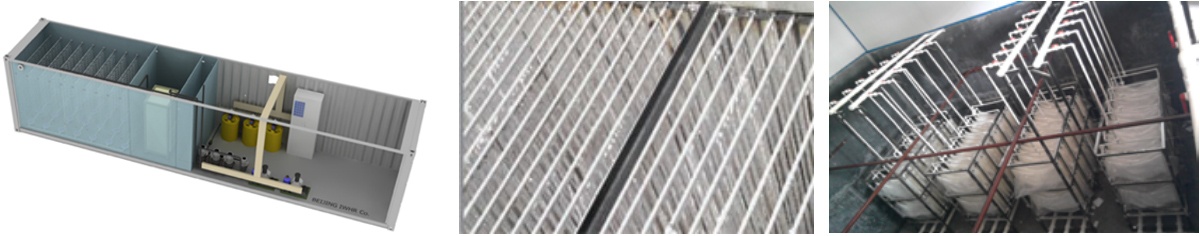

Using braided belt type biological packing to lift removal rate in sewage treatment; Imported polyvinylidene fluoride membrane material, material has better strength as well as the stability.
BIC containerized water treatment plant assimilates the system integration of sewage treatment plant and steel structure processing equipment, which owning itself advantages and characteristics:
Relying on the container housing appearance, can meet the sea shipment requirements, the transportation is extremely convenient;
Easy installation, users only need to pass in and out water pipes could be directly connected with the equipment normal operation;
The operation is simple, the equipment according to edit well in advance conditions, the control of automatic operation, can also according tothe needs of the users, manual control;
Flexible operation, the equipment could adapt to the changing capacity of water ;
Less investment, low operation cost, small footprint; Using the design principles of intensive, the system Configuration is more reasonable;
System maintenance is very convenient and only personnel on a regular basis Patrol, mechanical and electrical equipment preventive maintenance;
Process control system is very simple, reduced running the labor intensity of operation, sewage treatment system is safe and reliable.
Advanced technology installed in our mobile water treatment plant, strictly tested and manufactured according to environmental and quality policy.
One-stop service for setup and commission of water treatment system, which saves clients' labor,time and money.
Designed for small and large scale of wastewater treatment and water purification, including industry or remote communities without municipal sewage system.
For detailed water treatment design, technical support and solution, welcome to contact us!
The Power Supply Trye
Electricity power supply
Generator power supply
Solar power
