When it comes to managing the flow of water in dams, reservoirs, and canals, two primary types of gates often come up in conversation: radial gates and vertical gates. But what sets them apart, and why is it important to choose the right one for your project? In this article, we will break down the key differences between radial gates and vertical gates, so you can make an informed decision.
Radial gate a device used for controlling the flow of water over spillways or into canals by having the upstream face curved in the form of an arc the center of which is at the center of the gate hinge. called also tainter gate.
- Curved Structure: Designed to resist water pressure efficiently.
- Rotational Operation: The gate opens and closes by rotating around a hinge.
- Common Usage: Often found in large-scale water management systems like dams and spillways.
- Maintenance of water elevations in canals or spillways.
- Increased storage capacity for reservoirs.
- Diversion of water for irrigation.
- Flow control preserving wide clear waterways.
- Other areas requiring economical water control.
Vertical gates, also known as sluice gates or slide gates, are flat, rectangular gates that move up and down to control water flow. These gates are commonly used in smaller water management systems, such as irrigation canals or smaller dams.
- Flat Design: Simple and straight-forward design with no curvature.
- Upward/Downward Movement: Operates by sliding vertically to open or close.
- Common Usage: Typically used in smaller water management systems, such as flood control channels or sluices.

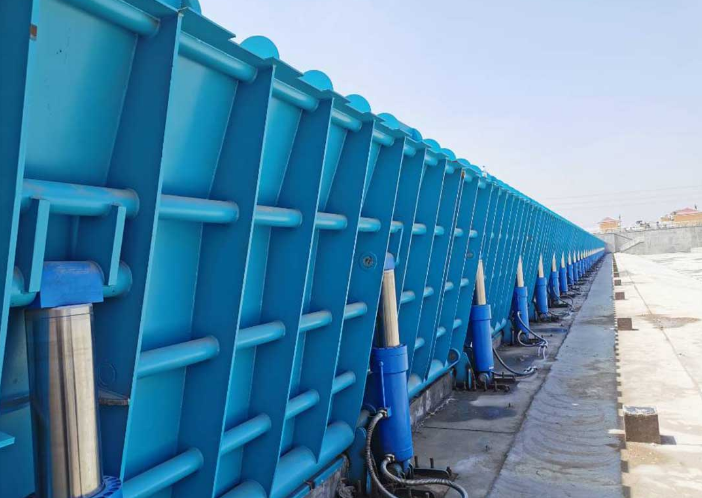

Radial, or tainter, gates are similar in principle but are curved in vertical section to better resist water pressure. Tilting gates consist of flaps held by hinges along their lower edges that permit water to flow over the top when they are lowered.
Now that we’ve outlined what each gate is, let’s explore the key differences between radial and vertical gates.
Radial Gates
Radial gates are designed with a curved, arched surface. This allows them to better handle the water pressure, which is spread evenly across the gate. The structure itself is often lighter because the curved design allows for more efficient pressure distribution.
Vertical Gates
On the other hand, vertical gates are flat and rectangular. Their simpler design doesn’t provide the same pressure distribution as radial gates, making them less ideal for handling large volumes of water or high pressure.
Radial Gates
Radial gates operate by rotating around a hinge. They are often controlled by hydraulic systems that allow for smooth and precise control over water flow. The rotation mechanism also allows for quicker opening and closing.
Vertical Gates
Vertical gates move straight up and down, often with the help of mechanical or manual systems. While the movement is straightforward, it is generally slower compared to the rotational mechanism of radial gates.
Radial Gates
Because of their rotational design, radial gates allow for more precise water flow control. They are typically used in scenarios where gradual release or fine-tuned management of water is required, such as in spillways.
Vertical Gates
Vertical gates provide more basic control over water flow, typically fully open or fully closed. They are more commonly used in situations where on/off water flow control is sufficient, such as irrigation systems.
The choice between radial and vertical gates usually depends on the scale and specific needs of the water management project.
Radial gates are commonly found in:
- Large Dams: Due to their ability to handle immense water pressure.
- Reservoirs: Where precise water control is crucial.
- Flood Spillways: To release water gradually and avoid sudden surges.
Vertical gates are typically used in:
- Irrigation Systems: Where simple on/off control is enough.
- Small Dams: Where water pressure is not extreme.
- Flood Channels: For quick water redirection during floods.
Both radial and vertical gates have their advantages and disadvantages, depending on your project’s requirements.
- Efficient Pressure Management: The curved design allows for even pressure distribution.
- Precise Water Control: Better suited for gradual water flow management.
- Quicker Operation: Hydraulic or mechanical systems allow for faster adjustments.
- Cost: Radial gates are often more expensive to install and maintain due to their complex design.
- Space Requirements: The rotational mechanism may require more room.
- Simple Design: Easier to install and maintain.
- Cost-Effective: Generally less expensive than radial gates.
- Space Efficiency: Takes up less space due to its vertical movement.
- Less Efficient Pressure Management: Cannot handle high water pressure as effectively as radial gates.
- Slower Operation: The vertical sliding mechanism can be slower compared to radial gates.
In summary, the choice between radial and vertical gates comes down to your specific water management needs. Radial gates excel in high-pressure situations and offer precise control, making them ideal for large dams and reservoirs. Vertical gates, on the other hand, are better suited for smaller projects where simplicity and cost are more important considerations.
If you're unsure which type of gate is right for your project, feel free to contact us. As an experienced supplier in the industry, we can help you find the perfect solution to meet your water management needs.
