Hydraulic structures are engineering constructions that harness the power of water for various purposes, such as water supply, flood control, irrigation, navigation, energy generation, and environmental protection. These structures are essential for managing water resources, ensuring water availability, and mitigating the impact of water-related disasters. Here are some of the most common types of hydraulic structures:
Dams are large barriers constructed across rivers and streams to control water flow, store water, and regulate its release. They serve multiple purposes, including water supply, irrigation, hydropower generation, flood control, and recreational activities. Multipurpose dams can be classified into various types, such as gravity dams, arch dams, buttress dams, and embankment dams, based on their design and construction materials.

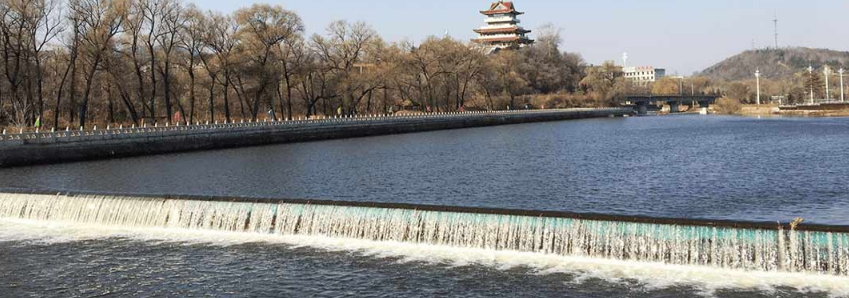

Hydraulic weirs are low head, overflow-type hydraulic structures typically built across rivers or streams to regulate water flow, measure discharge, or divert water for irrigation purposes. Weirs have a notch or crest over which water flows, and their design can vary based on the required flow rate and specific application.
Canals are artificial waterways constructed to transport water for irrigation, drainage, navigation, or industrial purposes. They can be either lined with concrete or left unlined, depending on factors such as soil permeability and water flow rate. Canals are an integral part of irrigation systems and often serve as the primary means of water distribution to agricultural fields.
Aqueducts are water-carrying structures that transport water over long distances, typically from a water source to a city or agricultural area. Historically, aqueducts were constructed using gravity flow, and some ancient structures are still standing today. Modern aqueducts may also use pumps to lift water over hills and mountains.
Locks and dams are structures commonly found on river systems with variable water levels. Locks are chambers with watertight gates that allow ships and boats to navigate through a dam or a series of dams by raising or lowering the water level to accommodate changes in elevation.
Spillways are designed to safely discharge excess water from a dam or reservoir to prevent overtopping and potential damage. They provide a controlled path for the water to flow, reducing the risk of flooding downstream.
Tunnels and conduits are underground passages or channels used to transport water from one location to another, often to bypass natural obstacles like mountains or to convey water for hydroelectric power generation.
Pumping stations are facilities equipped with pumps that lift water from a lower level to a higher level, overcoming elevation differences and allowing water to flow through channels, pipelines, or aqueducts.
Breakwaters and groynes are coastal structures designed to protect shorelines from erosion caused by waves and currents. Breakwaters are large, offshore barriers that reduce the force of waves before they reach the shoreline, while groynes are shorter structures built perpendicular to the coast to trap sediments and build up beaches.
Fish ladders and fishways are structures built in or around dams and weirs to help fish migrate upstream during spawning seasons. They provide a series of steps or pools that enable fish to navigate around the barrier and continue their natural migration patterns.
Storm surge barriers, also known as surge gates or tidal barriers, are massive structures built across estuaries or tidal rivers to protect coastal areas from flooding during storms and high tides. They can be operated to close during extreme weather events, effectively blocking the surge of seawater.
Revetments and riprap are erosion control structures commonly used along riverbanks, shorelines, and canals. Revetments are sloping structures made of concrete, stone, or other materials, while riprap consists of large rocks or boulders placed to protect against erosion and scour.
These are just some of the many types of hydraulic structures designed and constructed to manage water resources, protect the environment, and provide essential services for societies worldwide. Each type of structure plays a critical role in water management and has its own engineering considerations based on the specific requirements of the project and the surrounding environment.
