Pillow-type rubber dams represent a remarkable leap in engineering simplicity and functionality. These innovative structures embody the concept of "less is more" by using minimalistic design to achieve maximum utility. While their applications are diverse, the real brilliance lies in their design principles, which blend material science, structural engineering, and hydrodynamic efficiency to create a solution that is both versatile and effective. This article delves into the design aspects of pillow-type rubber dams, showcasing how such an understated structure can make a profound impact.

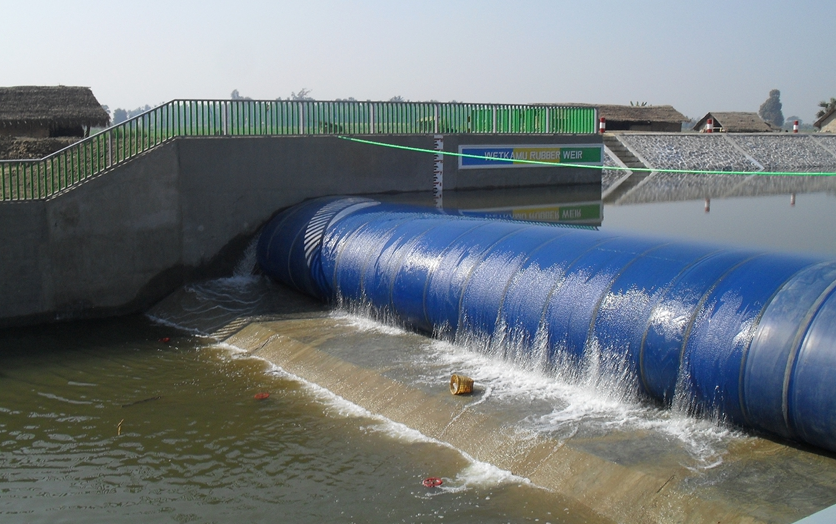

At their core, pillow-type rubber dams are inflatable structures installed on riverbeds, weirs, or spillways. They are primarily composed of three components:
1. Rubber Body: The main body is fabricated from a combination of natural and synthetic rubber, often reinforced with high-strength synthetic fabrics such as nylon or polyester. This provides the dam with the durability and elasticity needed to handle high water pressure and environmental stress.
2. Foundation: The dam is anchored to a concrete or steel base, ensuring stability and resistance to shifting forces such as water currents and sediment buildup.
3. Control System: A pneumatic or hydraulic system regulates the inflation and deflation of the rubber body, allowing precise control over water levels.
This straightforward assembly belies the sophisticated engineering involved in its design, making it a prime example of elegant problem-solving in the field of water management.
The rubber used in these dams is far from ordinary. Engineers meticulously select and test the materials to ensure they can withstand extreme conditions. The rubber must exhibit:
- High Tensile Strength: To endure water pressure and mechanical loads.
- Elasticity: To allow the dam to inflate and deflate repeatedly without losing integrity.
- Environmental Resistance: The material is designed to resist UV radiation, ozone degradation, chemical corrosion, and abrasion, ensuring a long service life.
Reinforcement with synthetic fabrics further enhances the dam's structural integrity. These fabrics distribute stress evenly across the rubber body, preventing weak points and extending durability.
The streamlined shape of a pillow-type rubber dam minimizes hydrodynamic resistance. When inflated, the curved surface guides water flow efficiently over or around the structure, reducing turbulence and energy loss. This design also helps maintain stability by evenly distributing pressure across the dam's surface.
Moreover, the dam's flexible structure allows it to conform to the contours of the riverbed. This adaptability ensures a tight seal, minimizing leakage and optimizing water retention.
Another hallmark of the design is its modularity. The rubber body is often constructed in sections, allowing for easier transportation, installation, and maintenance. These modules can be replaced individually, reducing downtime and repair costs.
The control system is an integral part of the dam's design. Modern rubber dams are equipped with automated systems that monitor water levels, pressure, and environmental conditions. This ensures real-time adjustments to the dam's inflation or deflation, enhancing efficiency and responsiveness.
The control mechanisms often include redundant safety features, such as pressure release valves, to prevent overinflation and ensure operational safety.
The design principles behind pillow-type rubber dams translate into several notable advantages:
1. Simplicity and Versatility: The inflatable nature of the dam eliminates the need for complex mechanical components, making it easy to deploy and operate in various environments.
2. Durability: Advanced materials and reinforcements provide long-term reliability, even under harsh conditions.
3. Cost-Effectiveness: The lightweight and modular design reduce transportation, installation, and maintenance costs compared to traditional dam structures.
4. Environmental Adaptability: The dam's flexibility allows it to accommodate natural variations in the riverbed or water flow, minimizing ecological disruption.
5. Rapid Deployment: The straightforward design enables quick installation, making it ideal for emergency scenarios.
While the design of pillow-type rubber dams is innovative, it is not without challenges. Engineers must address factors such as:
- Pressure Management: Ensuring the rubber body withstands variable water pressures without deforming excessively.
- Abrasion and Wear: Protecting the dam from sediment and debris carried by water flow.
- Temperature Sensitivity: Designing materials that remain elastic and durable across a wide temperature range.
Advancements in material science and control systems continue to address these challenges, further enhancing the performance and reliability of rubber dams.
Pillow-type rubber dams exemplify the power of intelligent design. Their simple yet highly effective structure harnesses the principles of material science, structural engineering, and hydrodynamics to create a solution that is as practical as it is ingenious. By focusing on the core aspects of durability, efficiency, and adaptability, these dams achieve a big impact with minimal complexity. They stand as a testament to how thoughtful engineering can solve complex problems with elegant simplicity.
