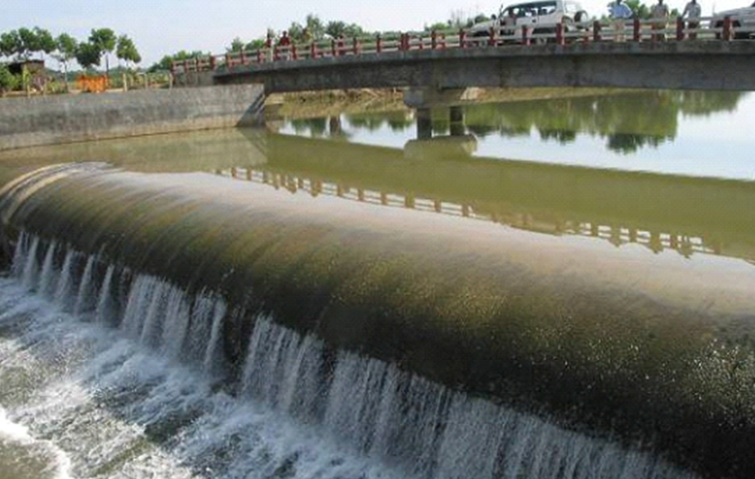

An inflatable rubber dam is a fabric-reinforced structure, typically made of synthetic rubber or plastic, anchored to a concrete foundation. These dams are filled with air or water to rise and create a barrier in a river or canal. When deflated, the dam lies flat, allowing the unobstructed flow of water. Their adaptability and cost-effectiveness make them a preferred choice for numerous hydraulic applications.
Inflatable rubber dams come in two main forms: water-filled and air-filled. The water-filled inflatable rubber dam has a longer filling and discharging time due to its unique characteristics. However, both types share similar costs. The structure of an inflatable rubber dam consists of the civil works, dam bag, anchors, water (or air) filling and discharging systems, and control systems. During operation, strict adherence to the established protocols and regulations is required. Special attention must be given to the inflation process, as the internal pressure during filling may exceed the design pressure, potentially causing damage.
Inflatable rubber dams are particularly suitable for sluice projects with low heads and long spans. They are often used for river water diversion, especially in flood seasons, and in canal water diversion systems. They also find applications in urban landscaping, such as creating artificial lakes by intercepting river flow. In short, the uses of inflatable rubber dams are vast and varied.
The rapid development of inflatable rubber dams in our country can be attributed to several key advantages in their construction. A comparative analysis with sluice gates highlights these benefits:
The durability and efficiency of an inflatable rubber dam largely depend on the materials used. The primary components include:
1. Synthetic Rubber or Polymer Membranes: These form the core of the dam structure. Common materials include chloroprene rubber (CR) and ethylene-propylene-diene monomer (EPDM). These materials are selected for their elasticity, weather resistance, and ability to withstand UV radiation and chemical exposure.
2. Fabric Reinforcement Layers: High-strength polyester or nylon fabric provides the necessary tensile strength to withstand water pressure and dynamic forces.
3. Adhesive and Coatings: Specialized adhesives bond the rubber layers to the fabric reinforcement. Additionally, protective coatings enhance resistance to abrasion, environmental stress, and microbial growth.
4. Anchoring Components: Steel plates and bolts secure the dam to the concrete foundation, ensuring structural stability.
The design process involves meticulous planning to ensure the dam meets operational requirements. Key factors include:
- Hydraulic Load Analysis: Engineers assess the expected water pressure, flow rates, and potential dynamic forces to determine the optimal thickness and reinforcement of the dam.
- Foundation Design: A robust concrete foundation is critical for anchoring the dam securely. It is designed to resist both static and dynamic loads.
- Inflation Mechanism: Air or water inflation systems must be tailored to the dam’s size and operational environment. Backup systems are incorporated for emergency deflation.
- Environmental Conditions: The dam's materials and coatings are selected based on exposure to sunlight, temperature fluctuations, and chemical contaminants.
The construction of an inflatable rubber dam involves multiple steps, each requiring precision and expertise:
The construction site is cleared, and the riverbed or canal is prepared for the installation of the concrete foundation. This step includes excavation, leveling, and compacting the soil to create a stable base.
A reinforced concrete foundation is built to anchor the rubber dam. The foundation includes grooves or embedded steel plates for attaching the dam securely. Expansion joints and drainage systems are integrated to accommodate temperature-induced movements and prevent water seepage.
The rubber membrane is manufactured off-site using synthetic rubber and fabric reinforcement layers. These layers are bonded and vulcanized to form a seamless, high-strength structure. Customization options, such as color coding and anti-slip surfaces, can be added during fabrication.
The rubber membrane is transported to the site and attached to the foundation using steel anchor plates and bolts. The attachment process ensures a watertight seal and evenly distributes stress across the structure.
Inflation pipes, pumps, and control systems are installed to enable the dam's operation. The system is tested for efficiency and reliability before the dam is inflated.
Comprehensive tests are conducted to ensure the dam's functionality. These tests include inflation and deflation cycles, leakage checks, and performance evaluations under simulated hydraulic conditions.
Inflatable rubber dams offer several advantages over traditional dam structures:
- Flexibility: Their inflatable nature allows them to adapt to varying water levels and flow rates.
- Cost-Effectiveness: They require less material and labor compared to conventional dams.
- Environmental Friendliness: Inflatable dams have minimal impact on aquatic ecosystems and are easily removable.
- Low Maintenance: The durable materials used ensure long service life with minimal upkeep.
- Rapid Deployment: They can be installed and operational in a fraction of the time required for traditional dams.
Inflatable rubber dams are versatile and find applications in:
- Flood Control: Temporary barriers can be deployed during floods to protect low-lying areas.
- Irrigation: They help regulate water levels in irrigation canals, ensuring consistent water supply.
- Hydropower Generation: Inflatable dams create reservoirs for small-scale hydropower plants.
- Recreational Purposes: They are used to create artificial ponds and enhance urban landscapes.
Advancements in materials science and automation are set to enhance the efficiency and reliability of inflatable rubber dams. Smart control systems, real-time monitoring, and eco-friendly materials are paving the way for more sustainable and high-performing solutions in hydraulic engineering.
