Inflatable dam technology—often realized with flexible rubber or vinyl membranes—has emerged as a versatile solution in water management, flood control, and ecological restoration. This article examines the technology's application, outlines common problems such as durability issues, weathering, and vandalism, and presents practical countermeasures that have been developed over decades of research and implementation.

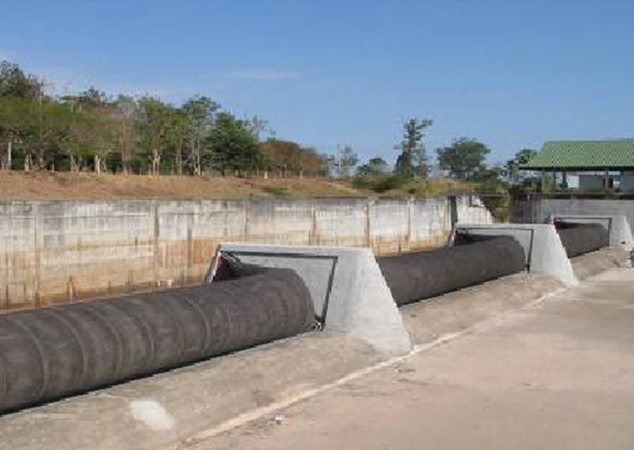

Inflatable dams are flexible structures installed across rivers, streams, or canals. They are inflated with air, water, or a combination of both, providing adjustable water retention and flood mitigation capabilities. Originally pioneered in the 1950s, these dams have evolved from small-scale constructions to large, multifunctional installations that address various engineering challenges.
- Flood Mitigation: By raising water levels temporarily, they divert excess flows during peak events.
- Water Conservation: In regions with variable rainfall, they serve as effective water-retaining structures.
- Environmental Management: Their ability to deflate allows natural waterway conditions to be restored, facilitating fish passage and sediment flushing.
Despite the many advantages, several challenges have been identified in the practical application of inflatable dam technology.
One of the most persistent issues is the durability of the materials used. Early designs utilizing rubber have shown susceptibility to weathering, UV degradation, and mechanical fatigue over time. This affects both the performance and the lifespan of the dam structures.
Inflatable dams face considerable exposure to environmental factors. Weathering—including extreme temperature variations, solar radiation, and moisture—can cause the membranes to lose elasticity and structural integrity.
In urban settings, inflatable dams are sometimes subject to vandalism or accidental mechanical damage. This not only compromises the dam's functionality but also necessitates frequent repairs and maintenance.
Managing the internal pressure and ensuring a consistent operational response under variable hydraulic loads is another critical challenge. An optimal balance must be achieved between maintaining the dam's shape and ensuring its functionality during flood events.
To address these challenges, engineers and researchers have developed a series of countermeasures aimed at enhancing the performance and longevity of inflatable dams.
- Improved Rubber Compounds: Advances in polymer science have led to the development of rubber compounds with enhanced UV and chemical resistance.
- Vinyl-Coated Membranes: The adoption of vinyl-coated fabrics has increased resistance to weathering and vandalism. These materials are not only stronger but also easier to repair by patching, similar to tire inner tubes.
- Double-Layer Structures: Implementing double-layer inflatable dams can distribute stress more evenly and reduce the required tensile strength of individual layers.
- Optimized Anchoring Systems: Enhanced anchoring and attachment methods ensure that the dam maintains its position and integrity even during high-flow conditions.
- Automated Inflation/Deflation Systems: Modern inflatable dams incorporate sensors and automated control systems to monitor water levels and adjust internal pressure accordingly. This smart operation minimizes human error and improves response times during flood events.
- Regular Maintenance Protocols: Establishing rigorous maintenance and inspection schedules can help identify potential degradation early and extend the dam's lifespan.
- Dual-Function Design: Some systems are designed to function as both water retention structures during dry periods and flood mitigation devices during storm events. This dual functionality maximizes utility and reduces overall energy consumption.
- Stakeholder Engagement: In projects involving urban waterways, engaging local communities and environmental experts can lead to operational adjustments that balance engineering needs with ecological benefits.
The continued evolution of inflatable dam technology promises further improvements in both efficiency and sustainability. Research is ongoing into novel materials, advanced computational design methods, and real-time monitoring systems that could revolutionize how these dams are integrated into water resource management systems worldwide.
By addressing issues related to durability, weathering, and vandalism through innovative countermeasures, inflatable dam technology stands as a viable alternative to traditional rigid dam structures—offering cost-effective, flexible, and environmentally friendly solutions.
